5.3 LS Engine and Transmission for Sale
Buying a 5.3 LS engine and transmission together solves a problem that catches a lot of builders off guard. When you source the two separately, you have to match the bellhousing, the flexplate or flywheel, the starter, the torque converter, and the electronic controls yourself. Get one wrong and your build stalls while you wait on the correct part.

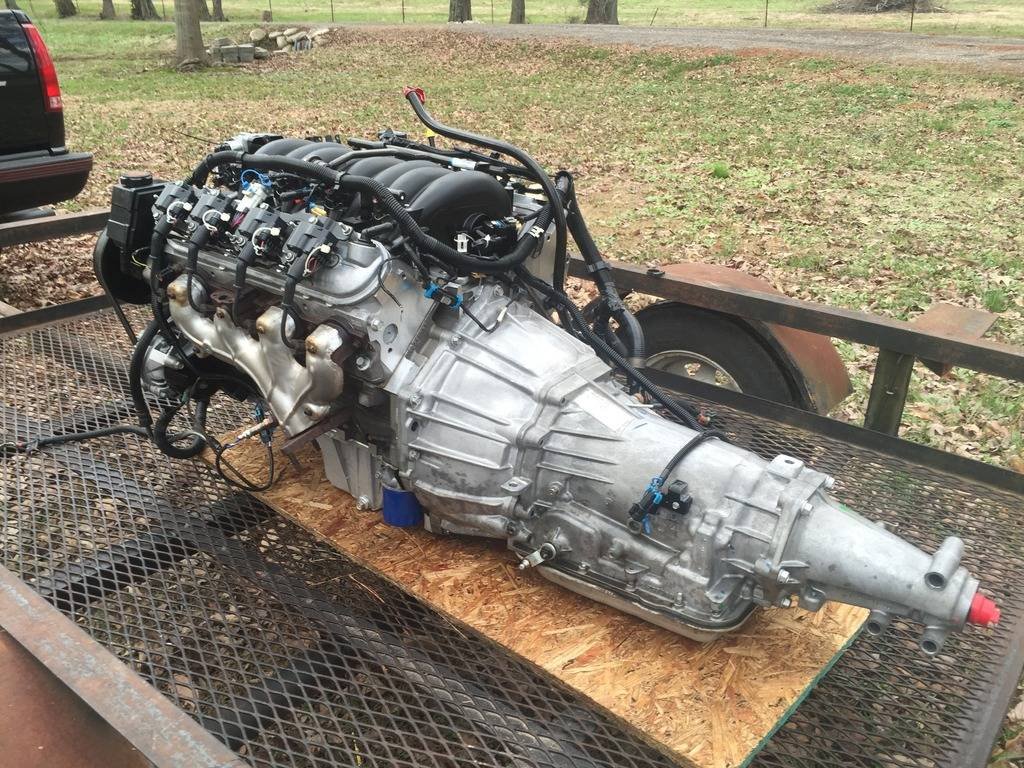

At 53LSEngine.com, we sell matched 5.3 LS engine and transmission packages. Both units come inspected and documented, and we confirm they work together before anything ships. As a result, you get a complete drivetrain that bolts up the first time.
Why Buy the Engine and Transmission Together
Sourcing a matched pair saves time, money, and frustration across the whole build.
Guaranteed Bellhousing Match
The LS uses a specific bellhousing bolt pattern. When you buy the engine and transmission from the same source, we confirm the pattern matches before shipping. Therefore, you skip the adapter plate research and the risk of ordering the wrong combination.
Correct Flexplate or Flywheel
The flexplate or flywheel has to match both the crankshaft flange and the transmission. A matched package includes the correct part or confirms the specification for you. Because of that, you avoid the most common LS swap ordering mistake.
Matched Electronics
Electronically controlled transmissions like the 4L60E and 4L80E need a controller that talks to the engine ECU. A matched package accounts for that from the start rather than after the parts arrive.
One Shipment, One Contact
Instead of tracking two shipments from two suppliers, you get one freight delivery. If something needs sorting out, you have one phone number to call.
Transmission Options for the 5.3 LS
We match 5.3 LS engines with a range of transmissions depending on your application and budget. Contact us to confirm which combinations we have available.

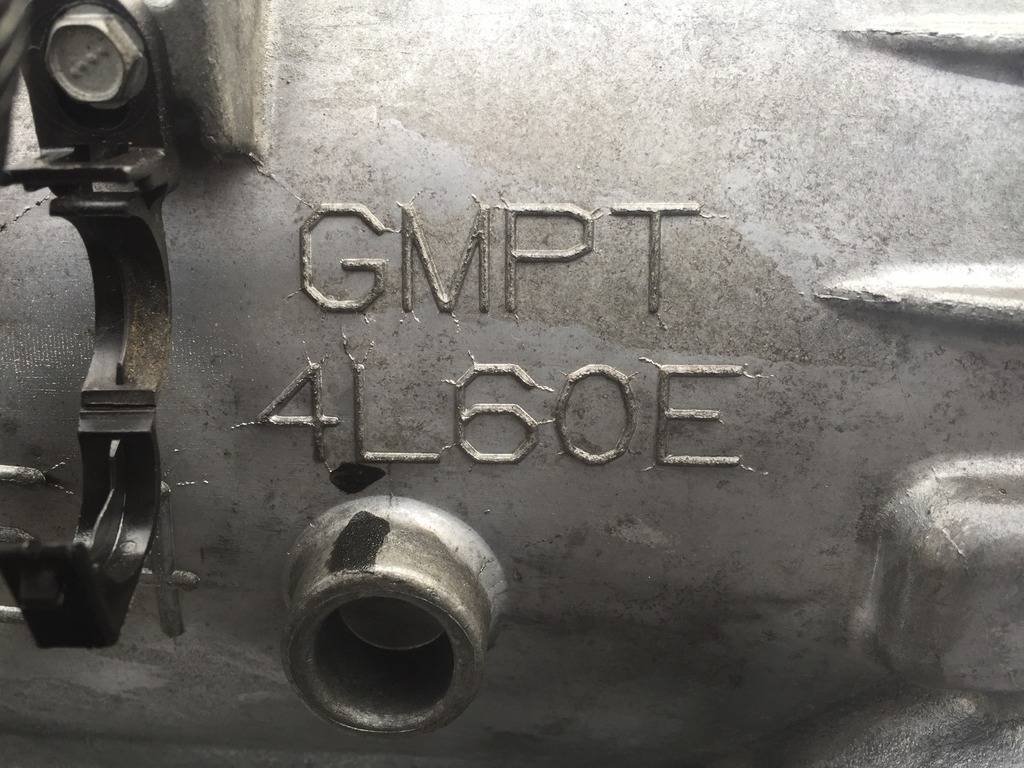

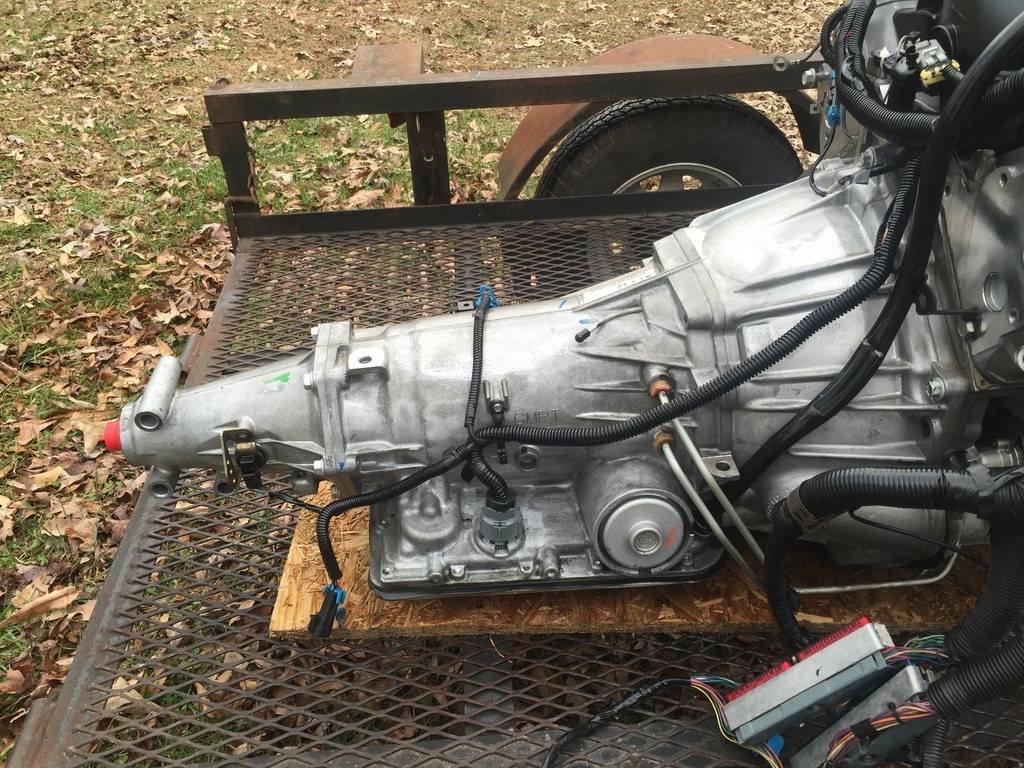

4L60E Four-Speed Automatic
The 4L60E is the most common automatic paired with the 5.3 LS from the factory. It handles stock 5.3 LS output well in street applications and includes an overdrive gear for highway driving. However, its torque capacity limits it in high-output builds. For a stock or mildly modified 5.3 LS, it remains the practical choice.
4L80E Four-Speed Automatic
The 4L80E is significantly stronger than the 4L60E and handles considerably more torque. It also includes an overdrive gear. Because it is physically larger and heavier, confirm your tunnel clearance before choosing it. For built 5.3 LS engines or heavier vehicles, the 4L80E is the safer choice.
6L80E Six-Speed Automatic
The 6L80E adds two more gears than the 4L80E, which improves both acceleration and highway cruising RPM. It requires electronic control matched to the engine ECU. For modern swap builds where driveability matters, the 6L80E is worth the added complexity.
T56 and Tremec Manual Options
For manual builds, the T56 and its Tremec Magnum successors bolt to the LS bellhousing pattern directly. You need the correct clutch, flywheel, and hydraulic release setup. Contact us to confirm what a manual package includes.
TH350 and TH400
For classic builds where a period-correct three-speed automatic fits the theme, the TH350 and TH400 both work with an adapter. The TH400 handles more torque than the TH350. Neither includes an overdrive gear, so highway RPM runs higher.
Transmission Comparison
| Transmission | Type | Overdrive | Torque Capacity | Best Application |
|---|---|---|---|---|
| 4L60E | 4-speed auto | Yes | Moderate | Stock to mild 5.3 LS street builds |
| 4L80E | 4-speed auto | Yes | High | Built engines, heavy vehicles, towing |
| 6L80E | 6-speed auto | Yes | High | Modern swaps, best driveability |
| T56 | 6-speed manual | Yes | High | Performance manual builds |
| TH350 | 3-speed auto | No | Moderate | Classic builds, period-correct |
| TH400 | 3-speed auto | No | High | Classic builds, high torque |
Contact us at +1 (216) 230-5433 to discuss which transmission fits your specific chassis and power level.
Engine Options in a Drivetrain Package
We build engine and transmission packages around all three 5.3 LS generations.
Gen 3 LM7 Packages
The Gen 3 Vortec 5.3 LS LM7 pairs most easily with a 4L60E or 4L80E. It has no VVT and no AFM, so the electronic controls stay simple. For a straightforward swap on a budget, this combination is hard to beat.
Gen 4 LH6 Packages
The Gen 4 Vortec 5.3 LS LH6 adds variable valve timing for a stronger torque curve. It pairs well with the 4L60E, 4L80E, or 6L80E. However, the ECU needs to manage the VVT system alongside the transmission controls.
Gen 5 EcoTec3 Packages
The Gen 5 EcoTec3 5.3 LS L83 uses direct injection and typically pairs with the 6L80E or 8L90 from the factory. Because the fuel system and electronics are more involved, confirm your complete plan with us before ordering a Gen 5 package.
What Comes With a Drivetrain Package
Package contents vary by combination. Contact us to confirm exactly what ships with the current available package.
Typically Included
- Complete 5.3 LS engine, inspected and compression tested
- Matched transmission, inspected and documented
- Flexplate or flywheel matched to the combination
- Torque converter on automatic packages
- Bellhousing bolts and hardware
Available on Request
- Engine wiring harness
- ECU and transmission controller
- Throttle body and sensors
- Accessory drive components
- Starter matched to the bellhousing configuration
Not Included Unless Confirmed
- Engine mounts and transmission crossmember
- Driveshaft
- Shifter and shift linkage
- Transmission cooler and lines
- Radiator and cooling components
- Exhaust manifolds or headers
Always confirm the complete component list in writing before ordering.
Inspection and Testing
Both units in a drivetrain package go through documented inspection before we list them.
Engine Inspection
- Compression testing — We test all eight cylinders and record actual readings. Then we give you those numbers before purchase.
- Oil condition — We drain the oil and inspect it for metal contamination.
- Mileage verification — We verify mileage from donor vehicle records rather than estimating.
- VVT and AFM — On equipped units, we check actuator condition and document AFM status.
- Audible check — We confirm no knocking, ticking, or unusual noise before packaging.
Transmission Inspection
- Fluid condition — We check fluid color and smell for signs of internal wear or overheating.
- External inspection — We check the case, pan, and seals for cracks, leaks, and prior damage.
- Input and output shaft — We check for excessive play at both shafts.
- Mileage documentation — We document donor vehicle mileage where records are available.
What You Still Need to Supply
A drivetrain package covers the engine and transmission. However, the chassis side is still your responsibility.
Mounting Hardware
You need motor mounts and a transmission crossmember matched to your chassis. Aftermarket swap mounts exist for most common LS applications.
Driveshaft
Measure your driveshaft length with the engine and transmission in their final position. Then order to that specification.
Cooling
Source a radiator sized for the engine and a transmission cooler for automatic packages. Because a transmission generates real heat under load, a dedicated cooler is worth the investment.
Fuel Delivery
You need a fuel pump, lines, and a regulator sized for the engine. Confirm the pressure specification for your specific generation.
Exhaust
Headers or manifolds must match your chassis and the cylinder head port configuration.
Pricing and Availability
Drivetrain package pricing depends on the engine generation, the transmission model, the condition of both units, and what else the package includes. A Gen 3 LM7 with a used 4L60E costs considerably less than a Gen 5 L83 with a 6L80E and full electronics.
Contact us at +1 (216) 230-5433 or Sales@53lsengine.com for current pricing, available combinations, mileage on both units, and lead times.
Also review our refund and return policy before purchasing so you understand the full terms.
Shipping
Engine and transmission packages ship on a certified freight pallet with both units secured and all ports plugged. Because the combined weight is significant, freight is the only practical shipping method. You receive a tracking number when the package ships.
Before signing the delivery receipt, inspect the pallet and both units carefully. If you see visible shipping damage, note it with the carrier immediately.
For residential deliveries, confirm liftgate service with the freight carrier when scheduling.
Other 5.3 LS Engine Options
Not sure a drivetrain package fits your build? Browse our other options instead.
- Gen 3 Vortec 5.3 LS LM7 — stock used engine for 1999 to 2007 replacements and mild swaps
- Gen 4 Vortec 5.3 LS LH6 — stock used engine for 2007 to 2013 applications with VVT
- Gen 5 EcoTec3 5.3 LS L83 and L86 — stock used engine for 2014 and newer applications
- 5.3 LS Stage 3 Performance Build — built 5.3 LS for performance street and swap builds
- 525 HP Chevrolet Performance LS3 Crate Engine — factory GM Performance unit with GM warranty
- Browse all used 5.3 LS engines
- Browse junkyard 5.3 LS engines
- Browse all build 5.3 LS engines
Frequently Asked Questions
Package and Compatibility Questions
Why should I buy the engine and transmission together?
A matched package guarantees the bellhousing, flexplate, starter, and electronics all work together. When you source separately, one wrong part stalls the whole build while you wait on a replacement.
What transmission works best with a 5.3 LS?
For stock or mild builds, the 4L60E handles the job and includes overdrive. For built engines or heavier vehicles, the 4L80E is stronger. The 6L80E adds two more gears for better driveability. Contact us to discuss your specific application.
Does the package include the driveshaft?
No. Driveshaft length depends on your chassis and where the engine and transmission sit in it. Measure after mounting, then order to that specification.
Electronics and Control Questions
Do I need a transmission controller?
For electronically controlled automatics like the 4L60E, 4L80E, and 6L80E, yes. The controller has to talk to the engine ECU. We can include a matched controller in your package on request.
Is the ECU included?
Not by default, but we can include it. Contact us to confirm what a complete electronics package covers for your specific combination.
Ordering and Shipping Questions
How is the package shipped?
Both units ship together on a certified freight pallet with all ports plugged and everything secured. You receive a tracking number when it ships.
Can I get a drivetrain package shipped to my location?
Yes. We ship to all 50 states via freight carrier. Contact us with your delivery ZIP code and we confirm the shipping cost before you order.
What warranty comes with the package?
Warranty terms vary by combination and condition. Contact us at +1 (216) 230-5433 to confirm coverage on both units before purchasing. Also review our refund and return policy.
Ready to Order Your Drivetrain Package
If you want a matched 5.3 LS engine and transmission that bolts together correctly the first time, contact us before you order. We then confirm the combination, mileage on both units, included components, pricing, and shipping cost for your location.
